HOQS N124C
AU$400.00
Sold out

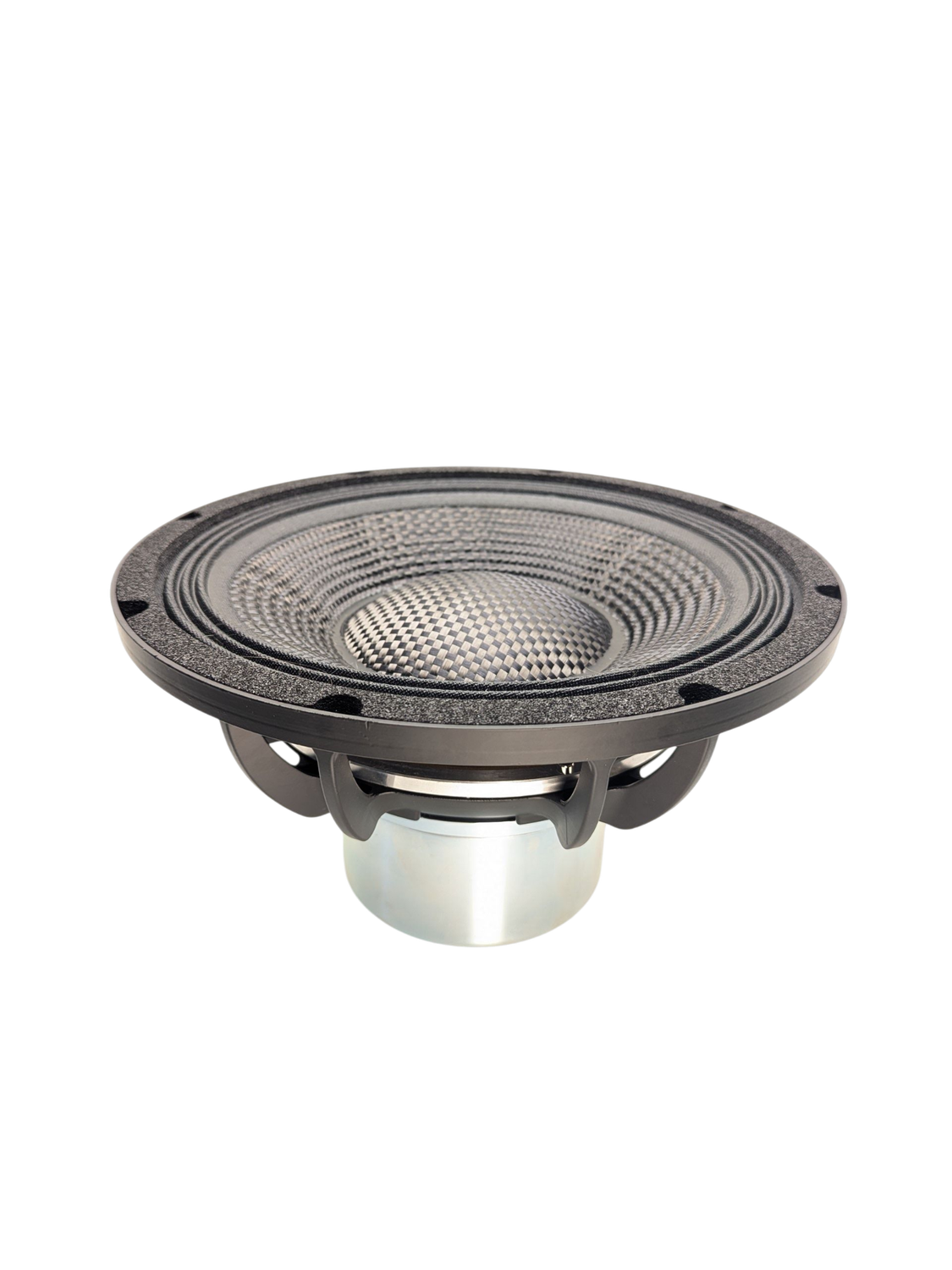

Neo Motor, 4" VC, Carbon Cone
Sold out
Save this product for later
HOQS N124C
Product Details
Please email orders@hoqs.com.au to register interest. An MOQ must be met for manufacturing.
Mounting Specs
- Overall Diameter: 315mm
- Bolt Circle Diameter: 300mm
- Bolt hole size: 6.5mm x 9mm (Oval)
- Baffle Cutout (Front Mounting): 275mm
- Baffle Cutout (Rear Mounting): 285mm
- Total Physical Depth: 175mm
- Basket Flange Thickness: 10mm
- Net Weight: 8.4kg
- Shipping Weight: 9.3kg (Single)
Thiele/Small parameters
| Sd | 532 cm2 |
| Re | 5.75 ohms |
| fs | 32.8 Hz |
| Vas | 58.12 litres |
| Qes | 0.30 |
| Qms | 12.08 |
| Qts | 0.29 |
| n0 | |
| Le @ 1kHz | 1.6 mH |
| Prms | 1000 Watts |
| Pmax | 2000 Watts |
| Xmax - 1 Way | 15 mm |
| Xvar - 1 Way | 28mm |
| BL | 25.5 |
| Mmd | 156.46 g |
| EBP | 110 |
| SPL Sens 1w@1m |
You May Also Like
Pre-order

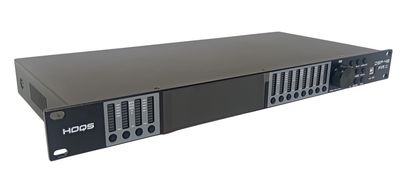

HOQS DSP-48 FIR
