HOQS N62C Neo 6" Mid Frequency Driver
AU$185.00
Neo Motor, 2" VC
Estimated delivery time
Pickup: tomorrow, 05:00 PM–09:30 PM
In stock: 8 available
1
Save this product for later
HOQS N62C Neo 6" Mid Frequency Driver
Product Details

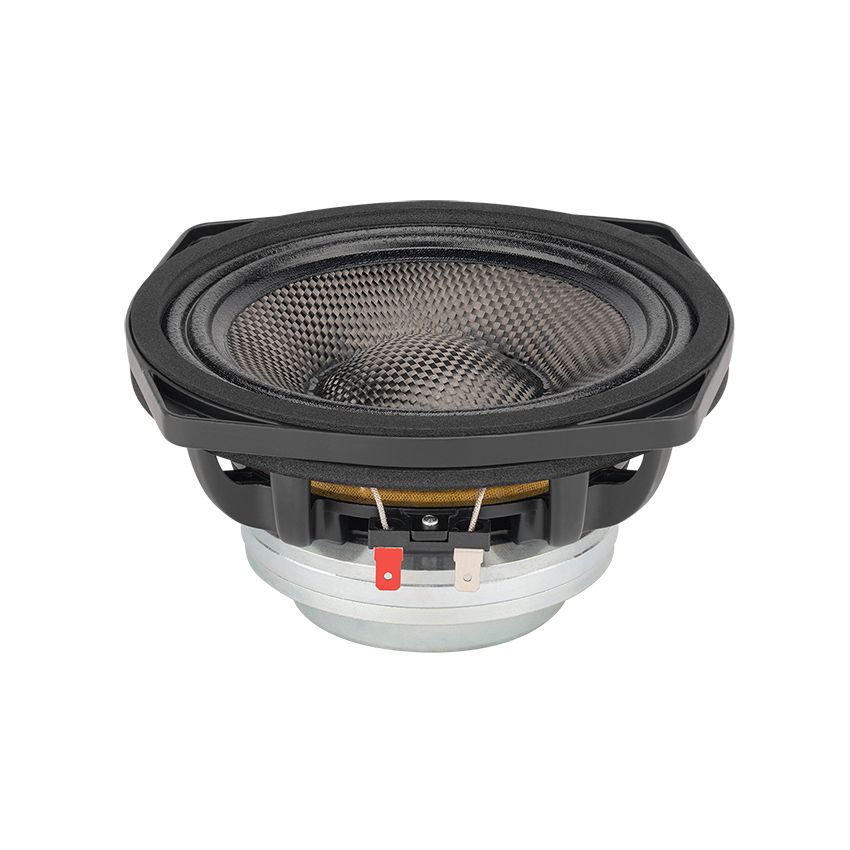

This 6" HOQS speaker driver with a carbon fiber cone and neodymium magnet, has great sensitivity with minimal distortion. Its advanced design offers improved low end response due to its optimized compliance, making it the perfect candidate for horn loaded systems.
2" Copper voice coil
Preinstalled front and rear mounting gasket
More details & Tech drawing - hoqs.com.au/hoqs-drivers/hoqs-n62c
Thiele/Small parameters
| Sd | 136.85 cm2 |
| Re | 5.5 ohms |
| fs | 95.5 Hz |
| Vas | 3.946 litres |
| Qes | 0.27 |
| Qms | 15.08 |
| Qts | 0.265 |
| Le @ 1kHz | 0.389 mH |
| Pmax | 500 Watts |
| Xmax | mm |
| BL | 15.08 |
| Mms | 18.64 g |
| EBP | 353.70 |
| Motor Force | 41.34 |
| SPL Sens 1w@1m | 94.7 dB |
Mounting and Shipping Info
Overall Diameter
- 161mm / 6.33"
Bolt Circle Diameter
- 173mm / 6.811"
Cutout Diameter
- 147mm / 5.78" (Rear Mount)
- 144mm / 5.66" (Front Mount)
Total Depth
- 83mm / 3.3"
Bolt Hole Diameter
- 5.5mm
Number of Bolt Holes
- 4
Net Weight
- 1.96 kg
Shipping Weight (Single)
- 2 kg
Shipping Box (Single)
- 177mm x 177mm x 116 mm
Shipping Weight (Carton 8pc)
- 16.5 kg
Shipping Box (Carton 8pc)
- 375mm x 375mm x 240 mm
